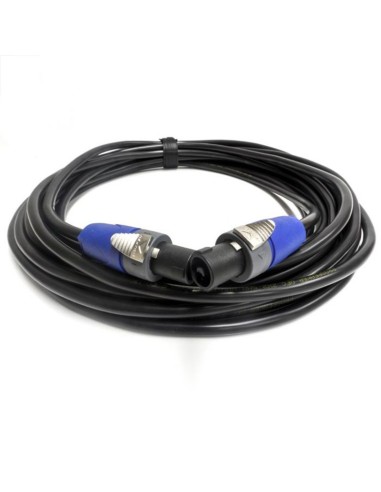

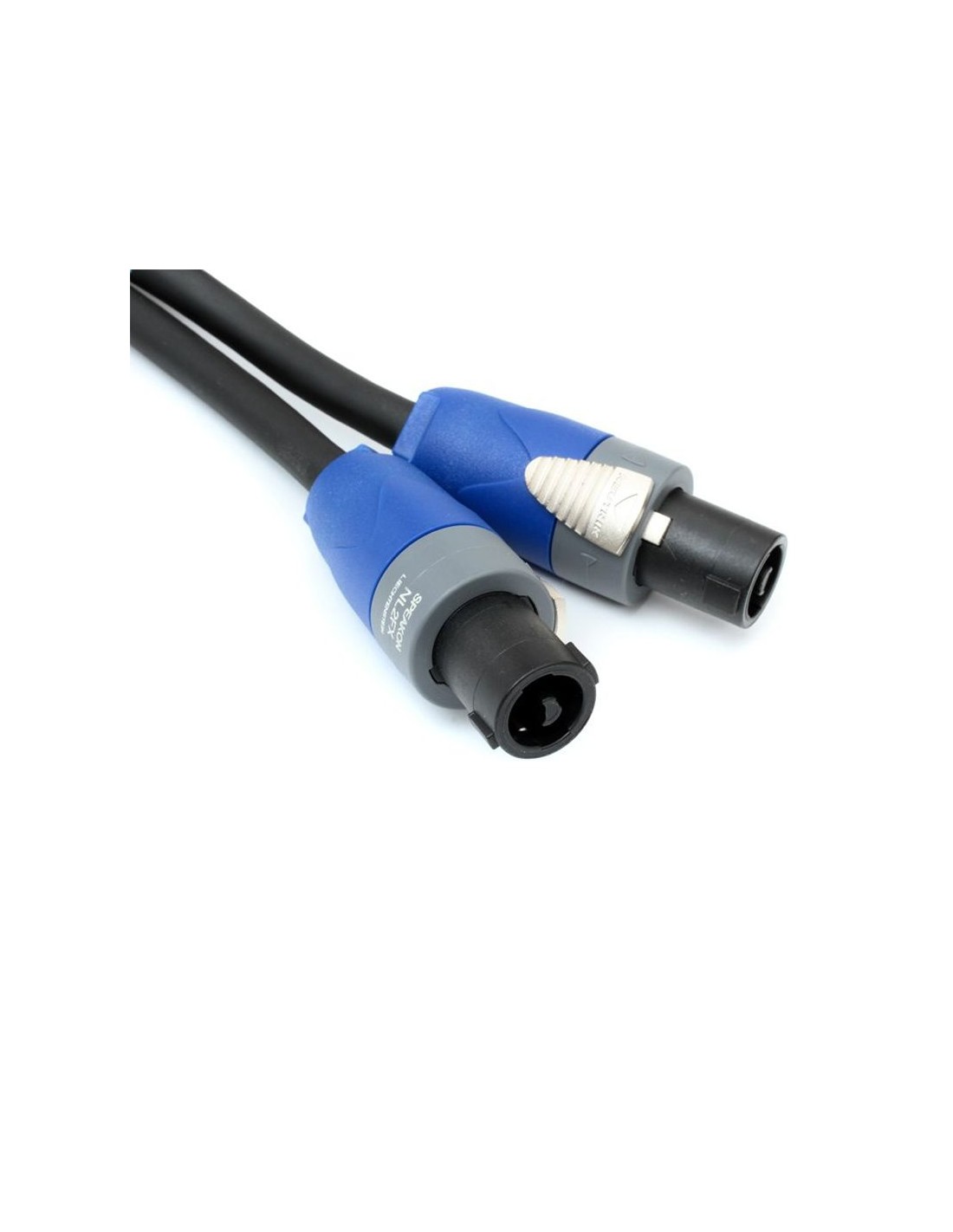

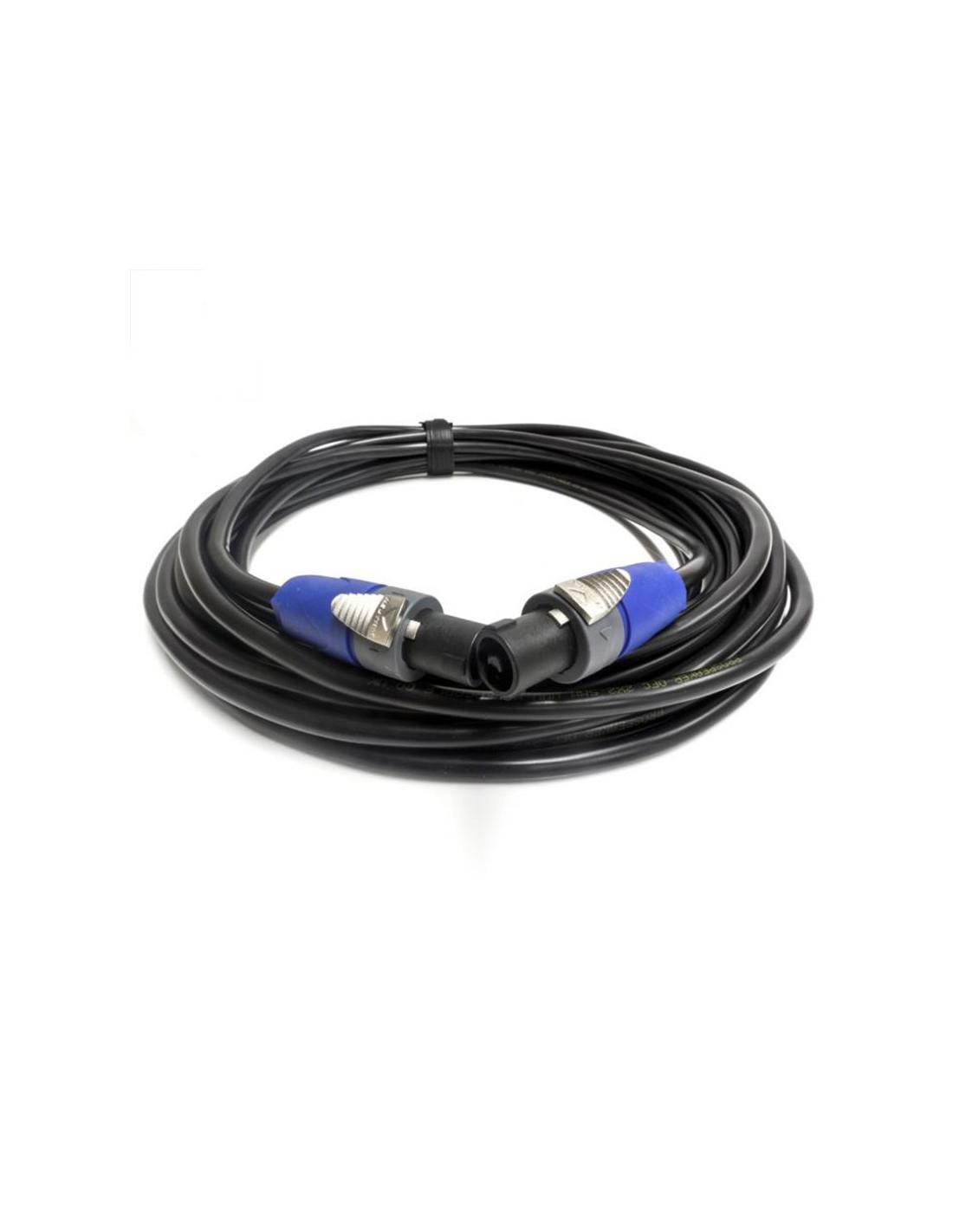

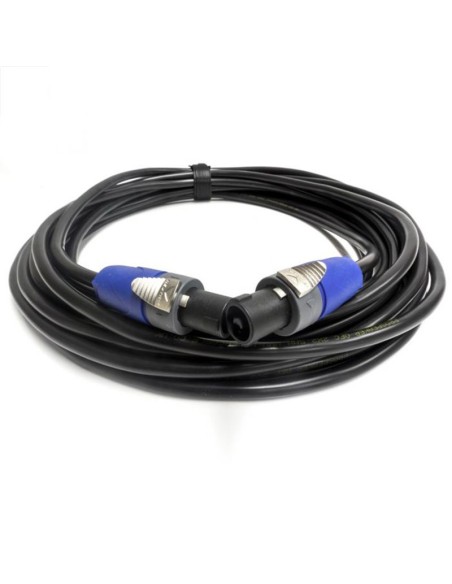

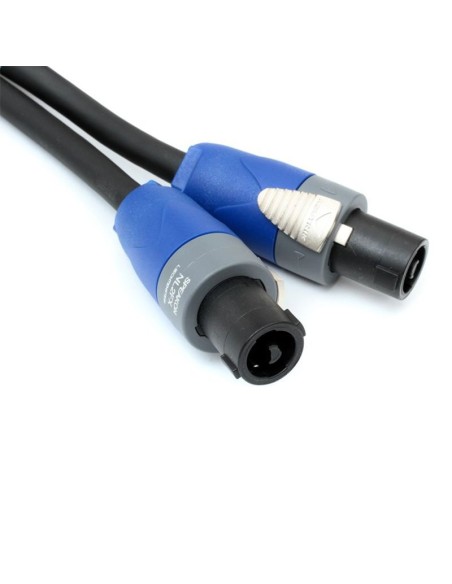

Câbles SpeakON NL2FX-NL2FX 2x2.5mm² 60cm
Nos câbles Speakon en 2.5 mm2 sont appréciés pour leur grande robustesse, leur facilité de branchement, et pour le fait qu’on ne puisse pas le retirer par simple traction. Ils sont conçu avec les connecteurs les plus fiables du marché : Neutrik NLFX.
Connecteurs disponibles :
- Neutrik NL2FX-NL2FX
- Neutrik NL4FX-NL4FX
CONNECTEURS NEUTRIK NL2FX et NL4FX
Product | |
Title | NLFX |
Connection Type | speakON |
Gender | female |
Electrical | |
Contact resistance | < 2 mΩ (after lifetime) |
Dielectric strength | 4 kVdc (peak) |
Insulation resistance | > 1 GΩ (after dampheat) |
Rated current per contact | 40 A rms continuous |
Rated current per contact | 50 A audiosignal, duty cycle 50 % |
Rated voltage | 250 V (Insulation) |
Attention | speakON is not to be used as an AC mains or power supply connector! |
Mechanical | |
Cable O.D. | 6 - 10 mm |
Cable retention | ≥ 220 N (subject to cable O.D. and material) |
Lifetime | > 5000 mating cycles |
Wiresize | 1.5 - 4 mm² |
Wiresize | 16 - 12 AWG |
Wiring | screw type terminals or soldering |
Locking device | Quick Lock (latch) |
Material | |
Contact plating | 4 µm Ag |
Contacts | Brass (CuZn39Pb3) |
Insert | PBTP 20 % GR |
Locking element | Zinc diecast (ZnAl4Cu1) |
Shell | PBTP 20 % GR |
Strain relief | Polyacetal (POM) |
Environmental | |
Flammability | UL 94 HB |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
